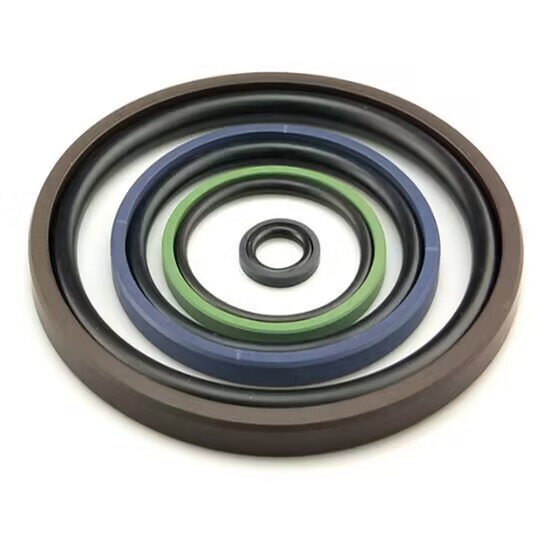

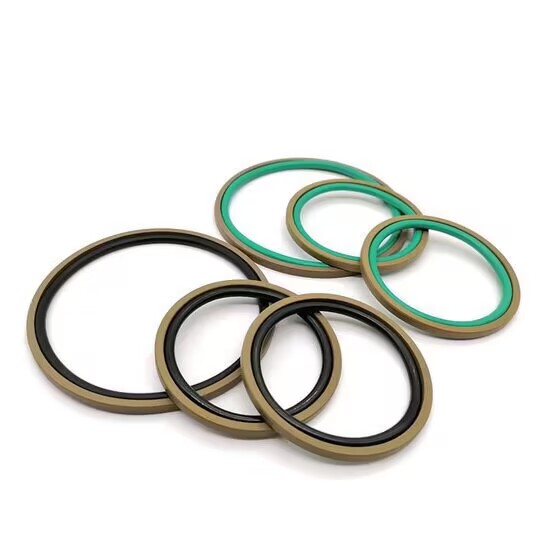

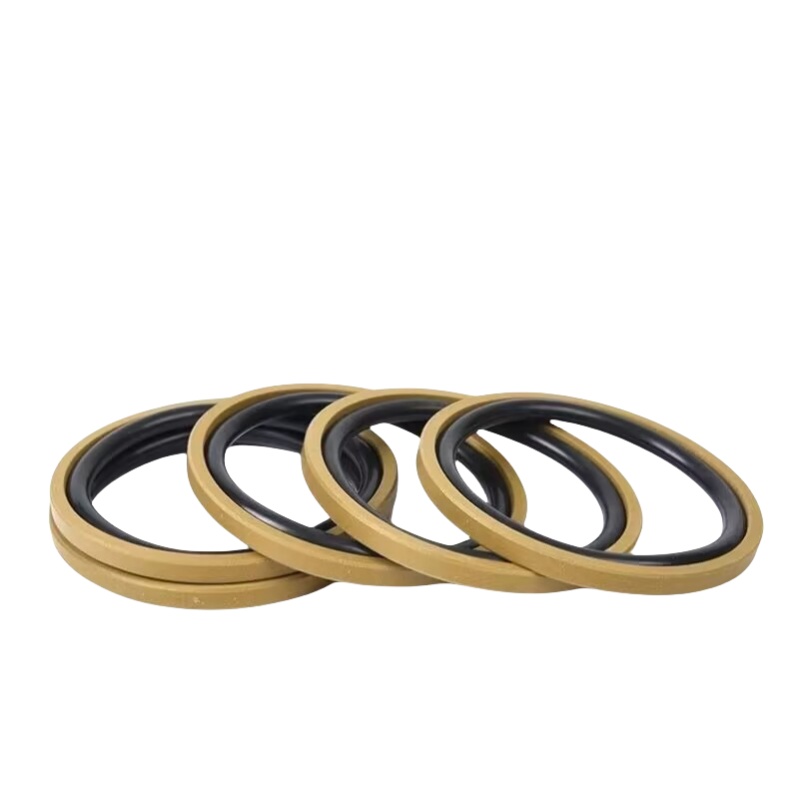

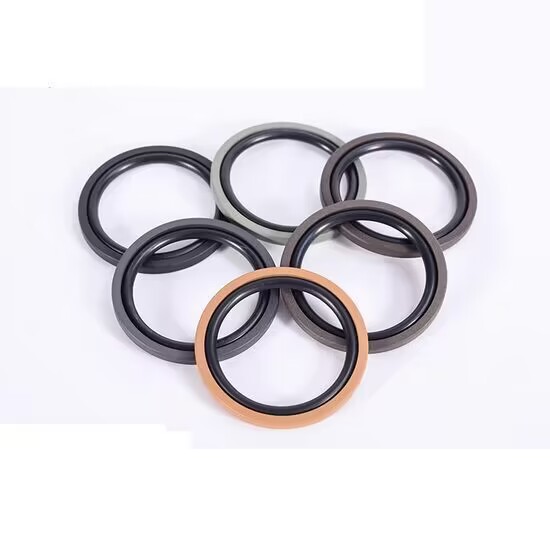

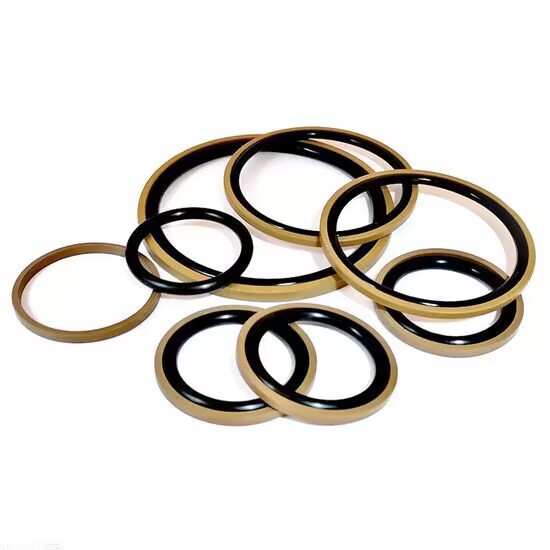

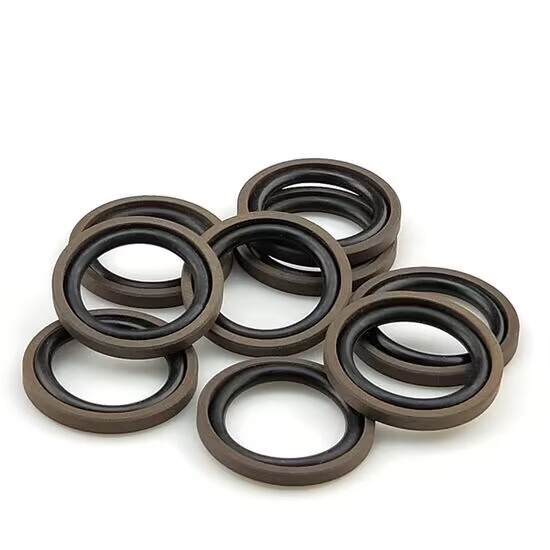

GSF Gryd ring
Products Model: piston seal GSD
Products Keywords: GSD seal ,rod sea ,piston seal ,hydraulic seal ,mechanical seals ,machiery seals ,Compact seal ,Gyd-ring
Products Description: Model : Gryd ring Materil:Brozne +PTFE O RING :NBR
Model : BSF Gryd ring
Materil:Brozne +PTFE O RING :NBR
No.
Size(mm)
No.
Size(mm)
1
GSF8*3.1*2.2
73
GSF125*104*8.1
2
GSF10*5.1*2.2
74
GSF130*114.5*6.3
3
GSF12*7.1*2.2
75
GSF130*109*8.1
4
GSF14*9.1*2.2
76
GSF135*119.5*6.3
5
GSF15*10.1*2.2
77
GSF135*114*8.1
6
GSF15*7.5*3.2
78
GSF140*124.5*6.3
7
GSF16*11.1*2.2
79
GSF140*119*8.1
8
GSF16*8.5*3.2
80
GSF145*129.5*6.3
9
GSF18*13.1*2.2
81
GSF145*124*8.1
10
GSF18*10.5*3.2
82
GSF150*134.5*6.3
11
GSF19*14.1*2.2
83
GSF150*129*8.1
12
GSF19*11.5*3.2
84
GSF160*144.5*6.3
13
GSF20*15.1*2.2
85
GSF160*139*8.1
14
GSF20*12.5*3.2
86
GSF170*154.5*6.3
15
GSF24*19.1*2.2
87
GSF170*149*8.1
16
GSF24*16.5*3.2
88
GSF180*164.5*6.3
17
GSF25*17.5*3.2
89
GSF180*159*8.1
18
GSF25*14*4.2
90
GSF190*174.5*6.3
19
GSF28*20.5*3.2
91
GSF190*169*8.1
20
GSF28*17*4.2
92
GSF200*184.5*6.3
21
GSF30*22.5*3.2
93
GSF200*179*8.1
22
GSF30*19*4.2
94
GSF210*189*8.1
23
GSF32*24.5*3.2
95
GSF220*199*8.1
24
GSF32*21*4.2
96
GSF225*204*8.1
25
GSF35*27.5*3.2
97
GSF230*209*8.1
26
GSF35*24*4.2
98
GSF240*219*8.1
27
GSF36*28.5*3.2
99
GSF250*229*8.1
28
GSF36*25*4.2
100
GSF260*239*8.1
29
GSF38*30.5*3.2
101
GSF270*249*8.1
30
GSF38*27*4.2
102
GSF280*259*8.1
31
GSF40*32.5*3.2
103
GSF290*269*8.1
32
GSF40*29*4.2
104
GSF300*279*8.1
33
GSF45*37.5*3.2
105
GSF310*289*8.1
34
GSF45*34*4.2
106
GSF320*299*8.1
35
GSF50*39*4.2
107
GSF330*305.5*8.1
36
GSF50*34.5*6.3
108
GSF340*315.5*8.1
37
GSF55*44*4.2
109
GSF350*325.5*8.1
38
GSF55*39.5*6.3
110
GSF360*335.5*8.1
39
GSF60*49*4.2
111
GSF370*345.5*8.1
40
GSF60*44.5*6.3
112
GSF380*355.5*8.1
41
GSF63*52*4.2
113
GSF390*365.5*8.1
42
GSF63*47.5*6.3
114
GSF400*375.5*8.1
43
GSF65*54*4.2
115
GSF410*385.5*8.1
44
GSF65*49.5*6.3
116
GSF420*395.5*8.1
45
GSF70*59*4.2
117
GSF430*405.5*8.1
46
GSF70*54.5*6.3
118
GSF440*415.5*8.1
47
GSF75*64*4.2
125
GSF510*485.5*8.1
48
GSF75*59.5*6.3
126
GSF520*495.5*8.1
49
GSF80*69*4.2
127
GSF530*505.5*8.1
50
GSF80*64.5*6.3
128
GSF540*515.5*8.1
51
GSF85*74*4.2
129
GSF550*525.5*8.1
52
GSF85*69.5*6.3
130
GSF560*535.5*8.1
53
GSF90*79*4.2
131
GSF570*545.5*8.1
54
GSF90*74.5*6.3
132
GSF580*555.5*8.1
55
GSF95*84*4.2
133
GSF600*575.5*8.1
56
GSF95*79.5*6.3
134
GSF610*585.5*8.1
57
GSF100*89*4.2
135
GSF620*595.5*8.1
58
GSF100*84.5*6.3
136
GSF630*605.5*8.1
59
GSF100*79*8.1
137
GSF640*615.5*8.1
60
GSF105*94*4.2
138
GSF650*625.5*8.1
61
GSF105*89.5*6.3
139
GSF660*635.5*8.1
62
GSF105*84*8.1
140
GSF670*642*9.5
63
GSF110*99*4.2
141
GSF680*652*9.5
64
GSF110*94.5*6.3
142
GSF700*672*9.5
65
GSF110*89*8.1
143
GSF750*722*9.5
66
GSF115*104*4.2
144
GSF780*752*9.5
67
GSF115*99.5*6.3
145
GSF800*772*9.5
68
GSF115*94*8.1
146
GSF850*822*9.5
69
GSF120*109*4.2
147
GSF900*872*9.5
70
GSF120*104.5*6.3
148
GSF950*922*9.5
71
GSF120*99*8.1
149
GSF1000*962*13.8
72
GSF125*109.5*6.3
