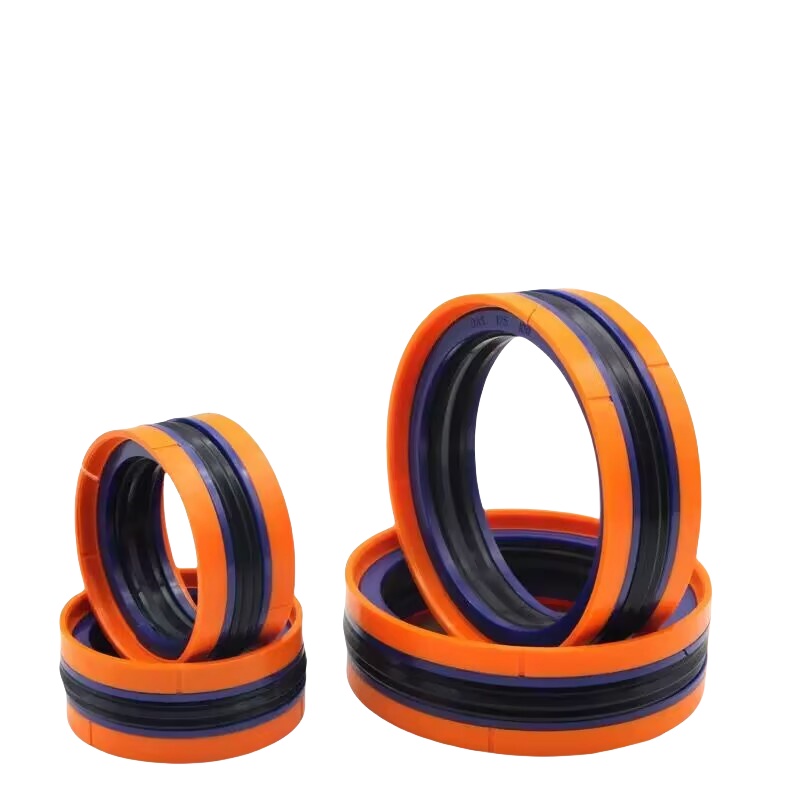

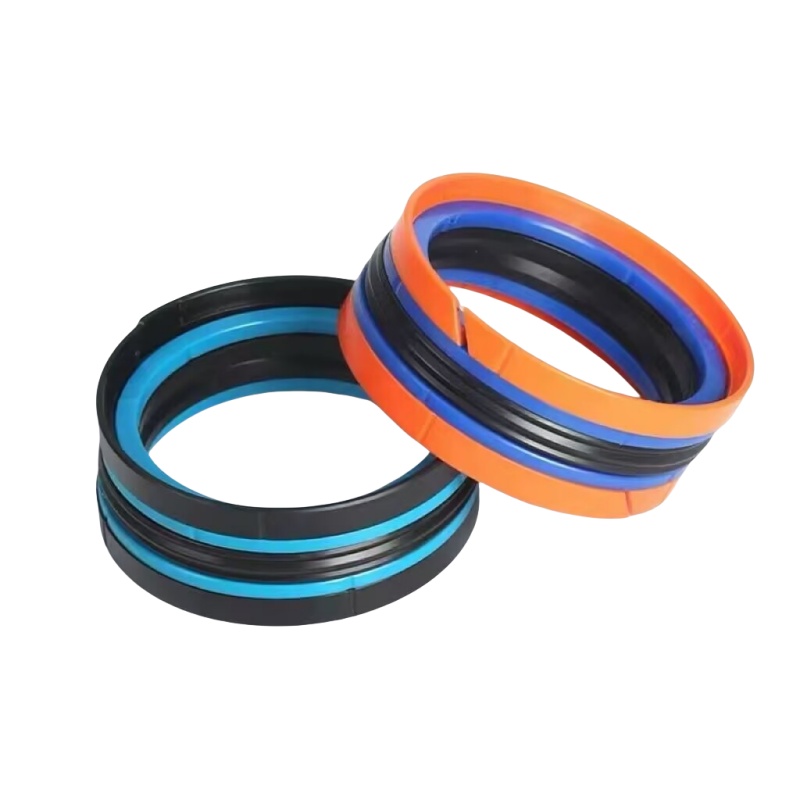

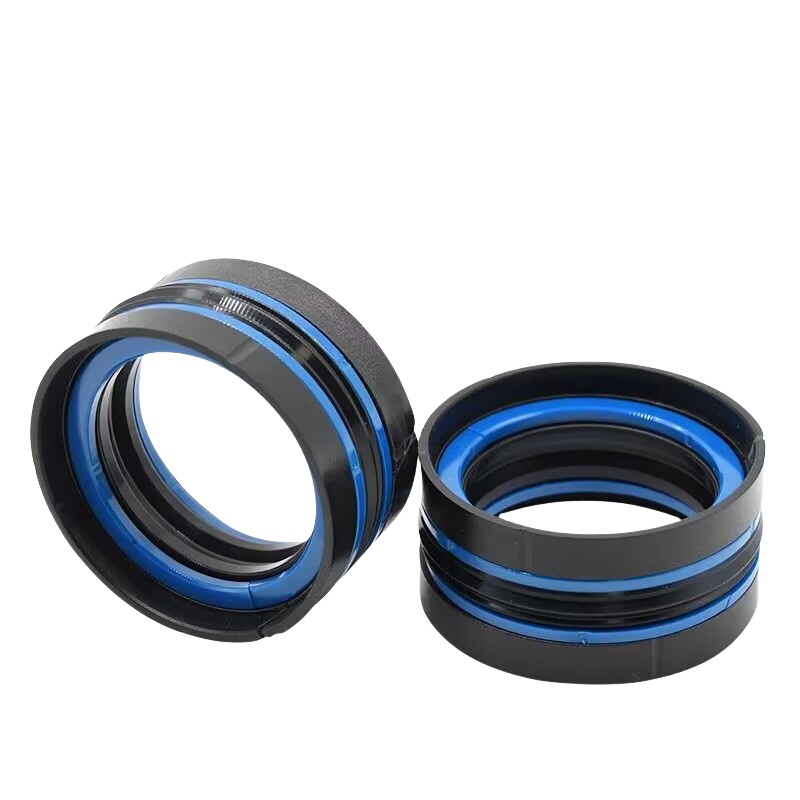

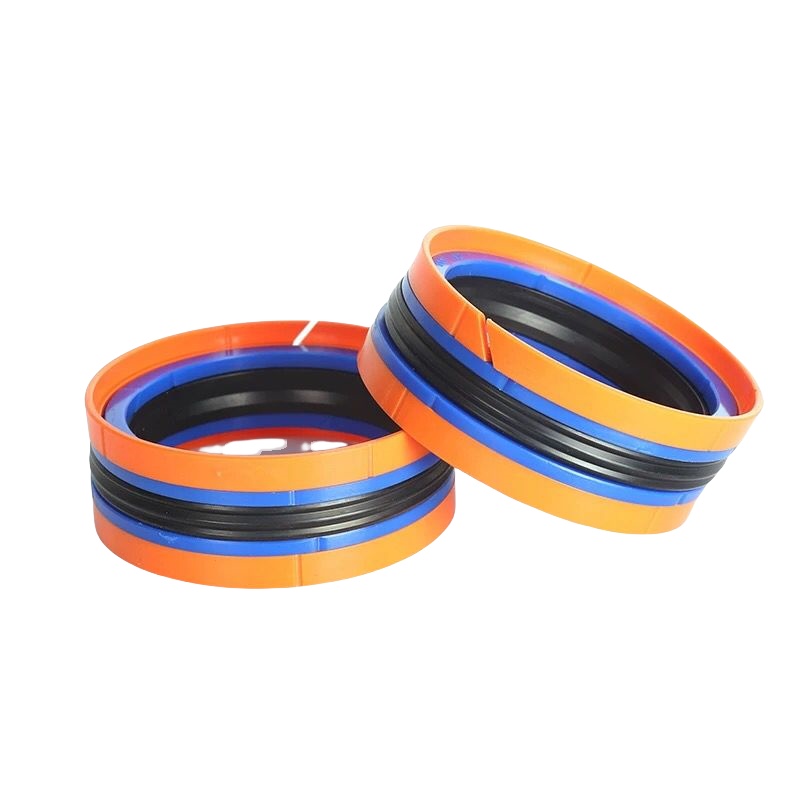

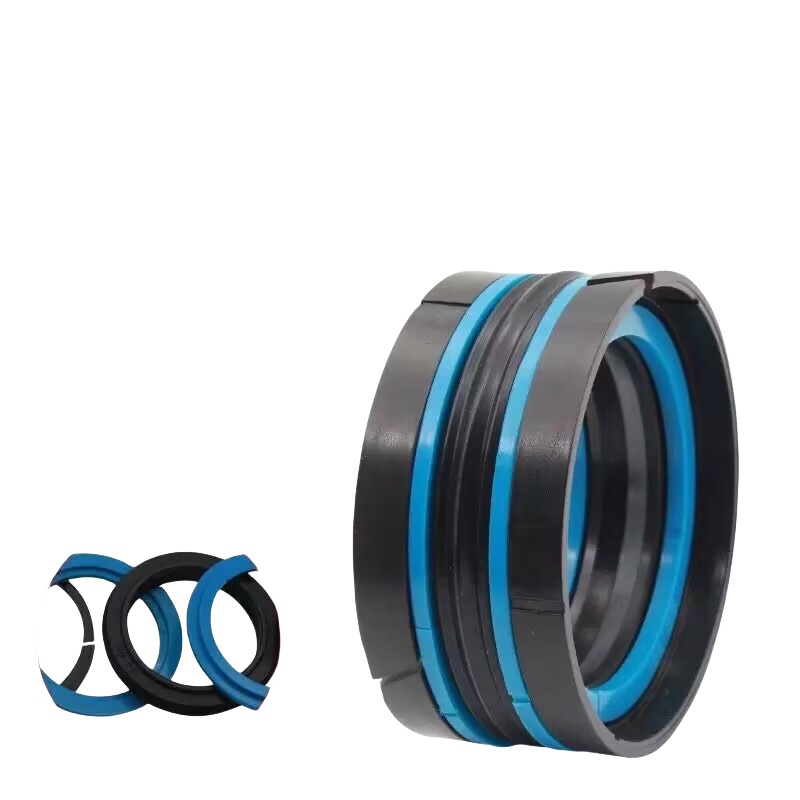

KDAS piston compact seal
Products Model: KDAS
Products Keywords: hydraulic seals, rod seal ,piston seal ,mechanical seals ,guider seal ,KDAS Seals
Products Description: Model: KDAS Piston compactSeal Material : Profile seal:NBR Back-up ring : Polyester elastomer Guider rings:POM
Model: KDAS Piston compactSeal
Material : Profile seal:NBR
Back-up ring : Polyester elastomer
Guider rings:POM
| No. | Size(mm) | No. | Size(mm) |
| 1 | 20*11*17.7 | 58 | 110*96*32.9 |
| 2 | 22*13*17.7 | 59 | 115*90*35.1 |
| 3 | 25*15*29.1 | 60 | 115*97*29.7 |
| 4 | 25*15/1*20.5 | 61 | 120*95*35.1 |
| 5 | 25*16*17.7 | 62 | 120*106*32.9 |
| 6 | 28*19*17.7 | 63 | 125*100*38.1 |
| 7 | 30*21*17.7 | 64 | 125*103*36.7 |
| 8 | 32*22*29.1 | 65 | 125*108*40.9 |
| 9 | 32*22/1*20.7 | 66 | 130*105*44.4 |
| 10 | 32*24*21.9 | 67 | 130*105/1*38.1 |
| 11 | 35*25*29.1 | 68 | 135*110*44.4 |
| 12 | 35*25/1*20.7 | 69 | 135*110/1*38.1 |
| 13 | 40*24*31.1 | 70 | 140*115*44.4 |
| 14 | 40*26*20.7 | 71 | 140*115/1*38.1 |
| 15 | 40*30*29.1 | 72 | 140*118*36.7 |
| 16 | 40*30/1*20.5 | 73 | 140*123*40.9 |
| 17 | 40*30/2*20.5 | 74 | 145*120*44.4 |
| 18 | 42*28*20.7 | 75 | 145*120/1*38.1 |
| 19 | 45*29*31.1 | 76 | 150*125*44.4 |
| 20 | 45*31*20.7 | 77 | 150*125/1*38.1 |
| 21 | 45*35*29.1 | 78 | 150*128*36.7 |
| 22 | 50*34*31.1 | 79 | 150*133*40.9 |
| 23 | 50*34/1*26.7 | 80 | 155*130*44.4 |
| 24 | 50*38*28.9 | 81 | 160*130/1*38.1 |
| 25 | 55*39*31.1 | 82 | 160*130*44.4 |
| 26 | 55*39/1*26.7 | 83 | 160*135*44.4 |
| 27 | 56*40*26.7 | 84 | 160*138*36.7 |
| 28 | 60*44*31.1 | 85 | 160*143*40.9 |
| 29 | 60*44/1*26.7 | 86 | 165*140*44.4 |
| 30 | 60*48*28.9 | 87 | 170*145*50.8 |
| 31 | 63*47*31.1 | 88 | 175*150*50.8 |
| 32 | 63*47/1*26.7 | 89 | 180*150*48.1 |
| 33 | 63*47/2*32.1 | 90 | 180*155*50.8 |
| 34 | 63*51*28.9 | 91 | 185*160*50.8 |
| 35 | 63*51/1*28.9 | 92 | 190*165*50.8 |
| 36 | 65*49*26.7 | 93 | 195*170*50.8 |
| 37 | 65*50*31.1 | 94 | 200*175*50.8 |
| 38 | 70*50*35.1 | 95 | 210*185*50.8 |
| 39 | 70*54*26.7 | 96 | 220*190*48.1 |
| 40 | 70*58*28.9 | 97 | 220*195*50.8 |
| 41 | 75*55*35.1 | 98 | 225*200*50.8 |
| 42 | 75*59*26.7 | 99 | 230*205*50.8 |
| 43 | 80*60*35.1 | 100 | 240*215*50.8 |
| 44 | 80*62*29.7 | 101 | 250*220*48.1 |
| 45 | 80*66*32.9 | 102 | 250*225*50.8 |
| 46 | 85*65*35.1 | 103 | 260*235*50.8 |
| 47 | 90*70*35.1 | 104 | 260*235*60.5 |
| 48 | 90*72*29.7 | 105 | 270*245*50.8 |
| 49 | 90*76*32.9 | 106 | 275*250*44.7 |
| 50 | 95*75*35.1 | 107 | 280*250*54.4 |
| 51 | 100*75*35.1 | 108 | 280*255*50.8 |
| 52 | 100*80*37.7 | 109 | 300*275*50.8 |
| 53 | 100*82*29.7 | 110 | 320*290*54.4 |
| 54 | 100*86*32.9 | 111 | 320*295*50.8 |
| 55 | 105*80*35.1 | 112 | 360*335*50.8 |
| 56 | 110*85*35.1 | 113 | 380*355*50.8 |
| 57 | 110*92*29.7 | 114 | 400*375*50.8 |
