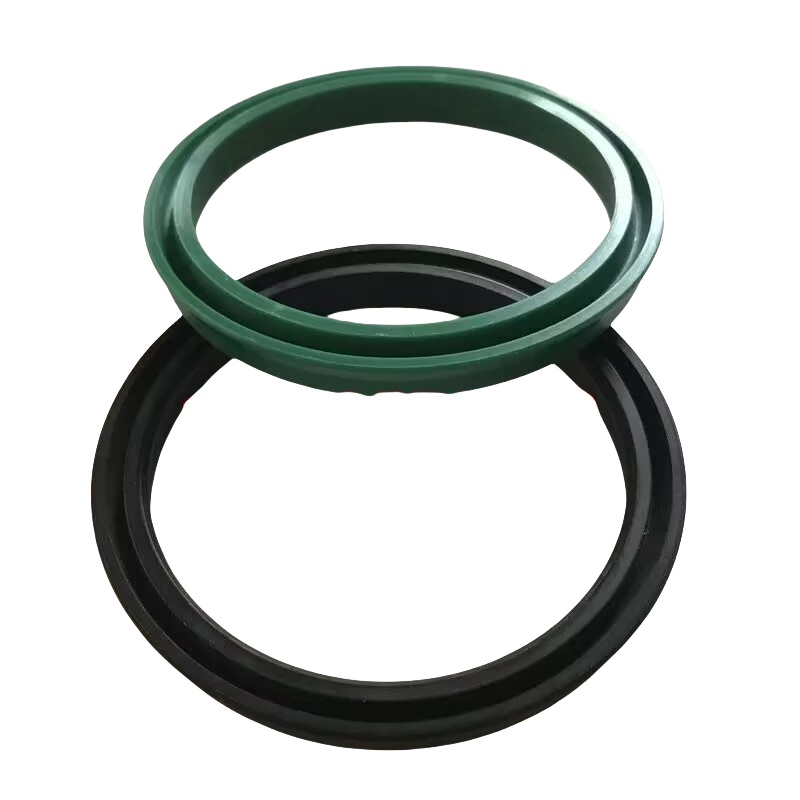

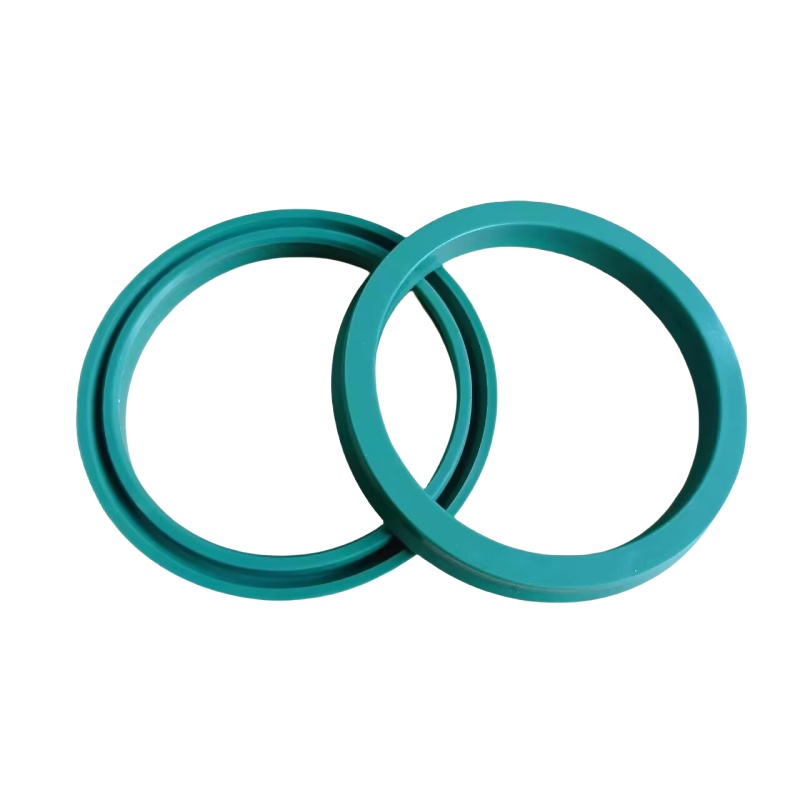

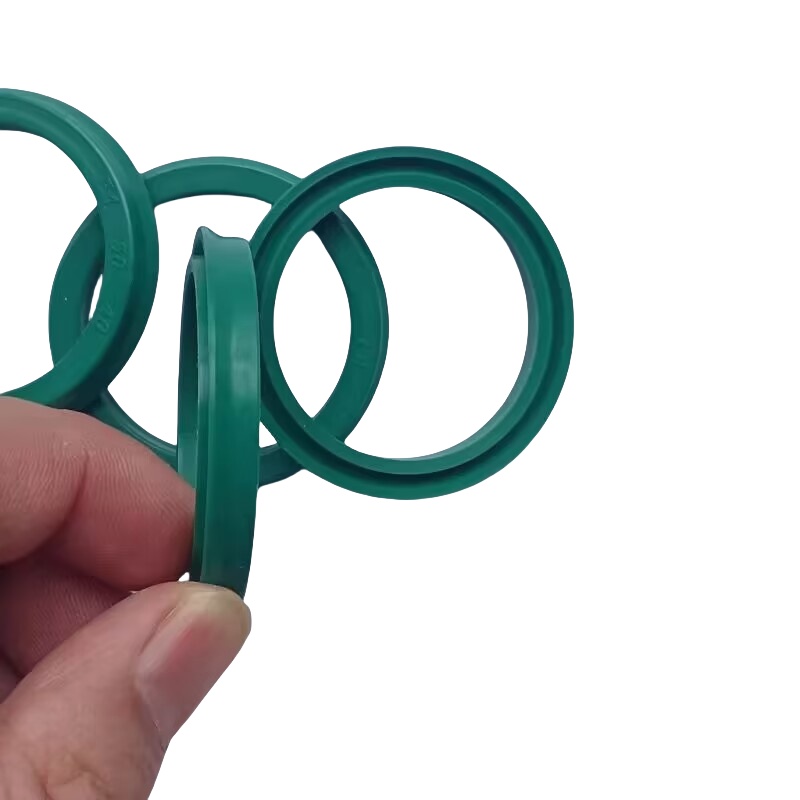

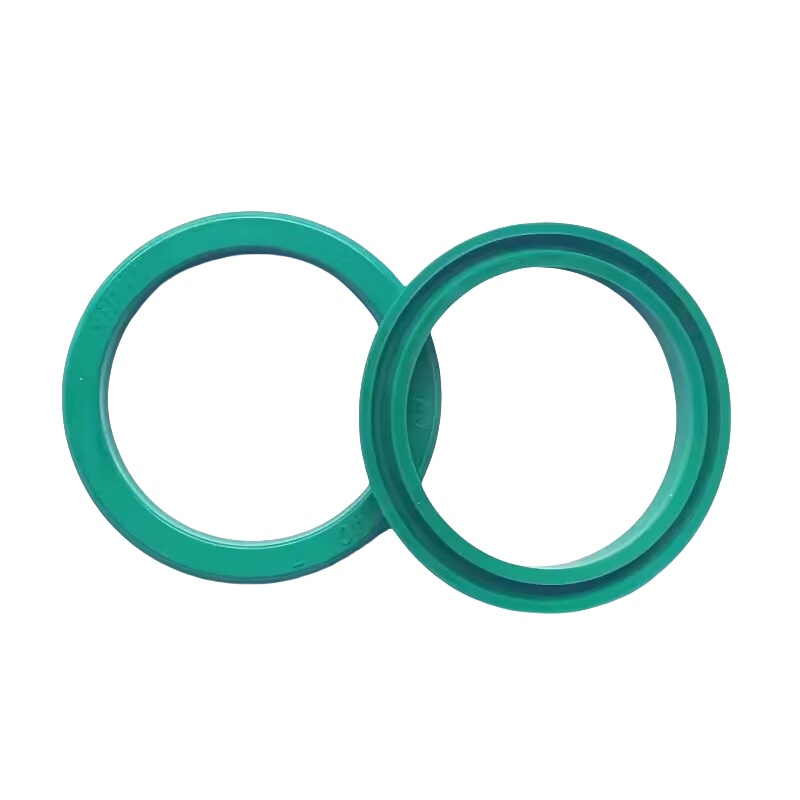

E4 Pneumatic piston seal
Products Model: Piston seal E4
Products Keywords: Pneumatic seal ,E4 seal,rod seal ,piston seal ,hydraulic seal ,mechanical seals ,machiery seals ,Compact seal ,Gyd-ring
Products Description: Model: E4 Pneumatic piston seal Material : TPU /NBR/ FKM Hardness: 65-80 shoreA Color :Green/Black/Brown
Model: E4 Pneumatic piston seal
Material : TPU /NBR/ FKM
Hardness: 65-80 shoreA
Color :Green/Black/Brown
| Item | ID(mm） | OD（mm) | H(mm) | Material | Hardness |
| E4 | 5 | 10 | 3 | PU | 75A |
| E4 | 6 | 12 | 4 | PU | 75A |
| E4 | 7 | 12 | 4 | PU | 75A |
| E4 | 8 | 14 | 4 | PU | 75A |
| E4 | 8 | 16 | 5.5 | PU | 75A |
| E4 | 9 | 16 | 5 | PU | 75A |
| E4 | 10 | 16 | 4 | PU | 75A |
| E4 | 12 | 20 | 5.5 | PU | 75A |
| E4 | 14 | 20 | 4 | PU | 75A |
| E4 | 14 | 20 | 4 | PU | 75A |
| E4 | 16 | 5 | 5 | PU | 75A |
| E4 | 16 | 22 | 5.5 | PU | 75A |
| E4 | 15.5 | 24 | 5.8 | PU | 75A |
| E4 | 17 | 25 | 4.5 | PU | 75A |
| E4 | 17 | 25 | 5.5 | PU | 75A |
| E4 | 18 | 25 | 7 | PU | 75A |
| E4 | 20 | 28 | 6.5 | PU | 75A |
| E4 | 22 | 32 | 7 | PU | 75A |
| E4 | 24 | 32 | 7 | PU | 75A |
| E4 | 26 | 32 | 7 | PU | 75A |
| E4 | 30 | 34 | 6 | PU | 75A |
| E4 | 30 | 36 | 7 | PU | 75A |
| E4 | 37 | 40 | 7 | PU | 75A |
| E4 | 40 | 42 | 7 | PU | 75A |
| E4 | 50 | 60 | 7 | PU | 75A |
| E4 | 53 | 63 | 7 | PU | 75A |
| E4 | 58 | 70 | 7.5 | PU | 75A |
| E4 | 65 | 75 | 8.5 | PU | 75A |
| E4 | 68 | 80 | 8.5 | PU | 75A |
| E4 | 72 | 84 | 8.5 | PU | 75A |
| E4 | 88 | 100 | 8.5 | PU | 75A |
| E4 | 93 | 105 | 8.5 | PU | 75A |
| E4 | 98 | 110 | 10 | PU | 75A |
| E4 | 105 | 120 | 10 | PU | 75A |
| E4 | 110 | 125 | 10 | PU | 75A |
| E4 | 125 | 140 | 10 | PU | 75A |
| E4 | 135 | 150 | 14 | PU | 75A |
| E4 | 140 | 160 | 15 | PU | 75A |
| E4 | 145 | 160 | 18 | PU | 75A |
| E4 | 180 | 200 | 16 | PU | 75A |
| E4 | 199 | 220 | 14 | PU | 75A |
| E4 | 225 | 250 | 18 | PU | 75A |
| E4 | 226 | 250 | 16 | PU | 75A |
| E4 | 230 | 250 | 14 | PU | 75A |
| E4 | 295 | 320 | 14 | PU | 75A |
| E4 | 295 | 320 | 17 | PU | 75A |
| E4 | 400 | 470 | 21 | PU | 75A |
