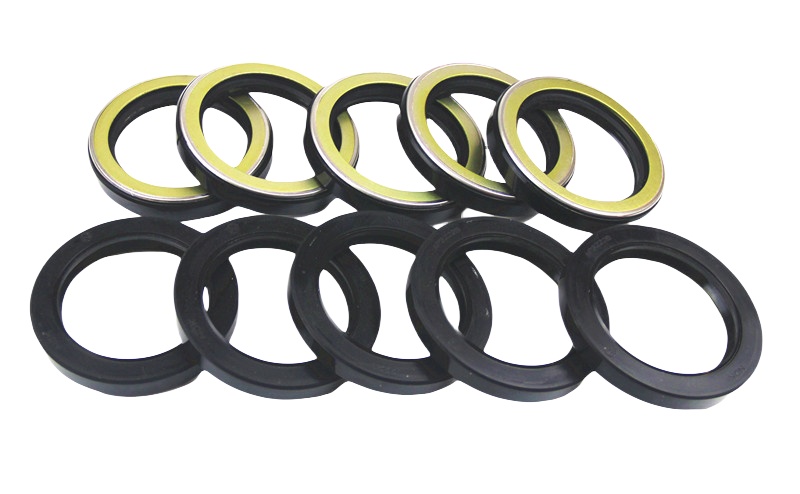

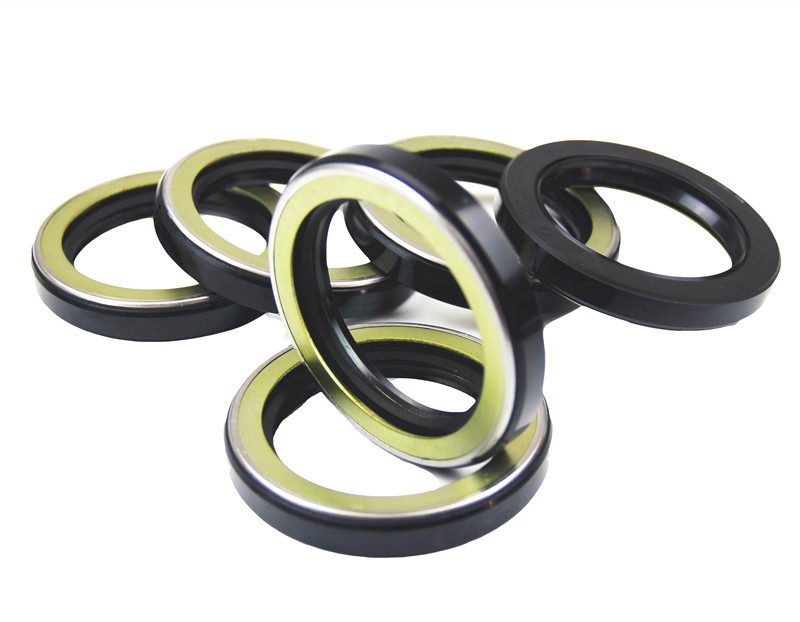

TCN oil seal
Products Model:
Products Keywords: oil seal TC oil seal TCN ol seal
Products Description: TCN OIL SEAL 1.material:NBR/VITON 2.Temperature Range: （1）NBR-30℃- +100℃ (2)VITON:-30℃ - + 200℃ 3.Pressure:5-7 PSI

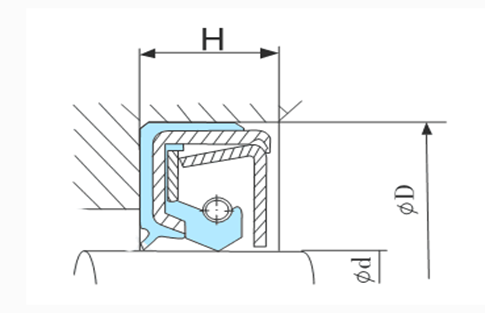

| TCN OIL SEAL | No. | dxDxH(mm ) | No. | dxDxH(mm ) | |||
| 1 | 25x45x12.5 | 18 | 80x105x15 | ||||
| 1.material:NBR/VITON | 2 | 28x48x12.5 | 19 | 85x110x13 | |||
| 2.Temperature Range: | 3 | 30x50x11 | 20 | 90x115x13 | |||
| （1）NBR-30℃- +100℃ | 4 | 30x50x12.5 | 21 | 95x120x13 | |||
| (2)VITON:-30℃ - + 200℃ | 5 | 32x52x11 | 22 | 95x120x15 | |||
| 3.Pressure:5-7 PSI | 6 | 34x54x11 | 23 | 100x125x13 | |||
| 7 | 35x55x11 | 24 | 105x135x14 | ||||
| 8 | 38x58x11 | 25 | 110x140x14 | ||||
| 9 | 40x62x11 | 26 | 115x145x14 | ||||
| 10 | 42x65x12 | 27 | 120x150x14 | ||||
| 11 | 48x70x12 | 28 | 125x155x14 | ||||
| 12 | 50x72x12 | 29 | 130x160x14 | ||||
| 13 | 55x78x12 | 30 | 135x165x14 | ||||
| 14 | 60x82x12 | 31 | 140x170x14 | ||||
| 15 | 62x85x12 | 32 | 150x180x14 | ||||
| 16 | 68x90x13 | 33 | 170x200x16 | ||||
| 17 | 70x95x13 | 34 | 190x225x16 | ||||
