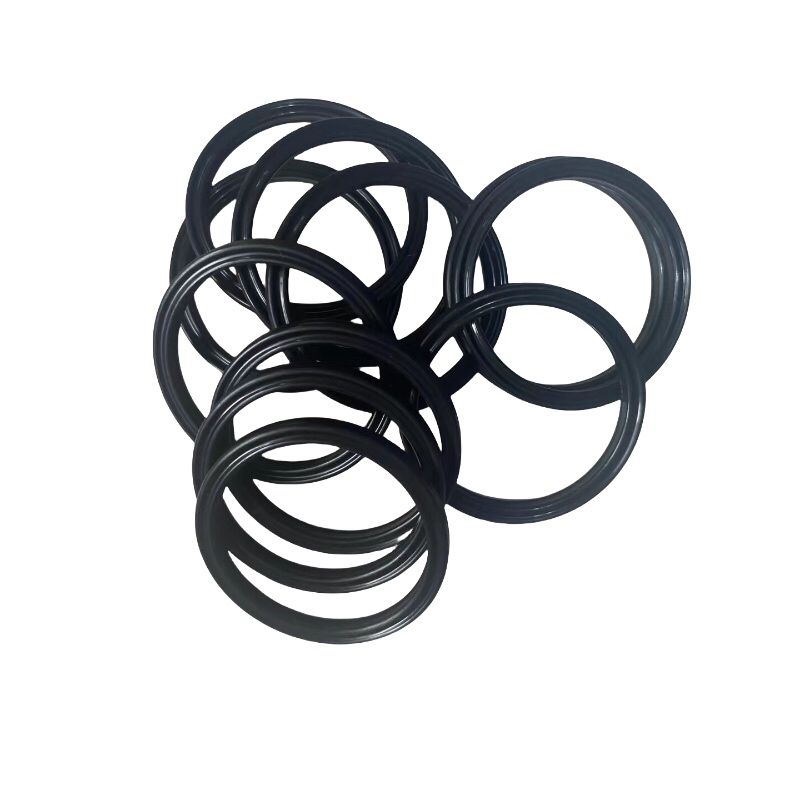

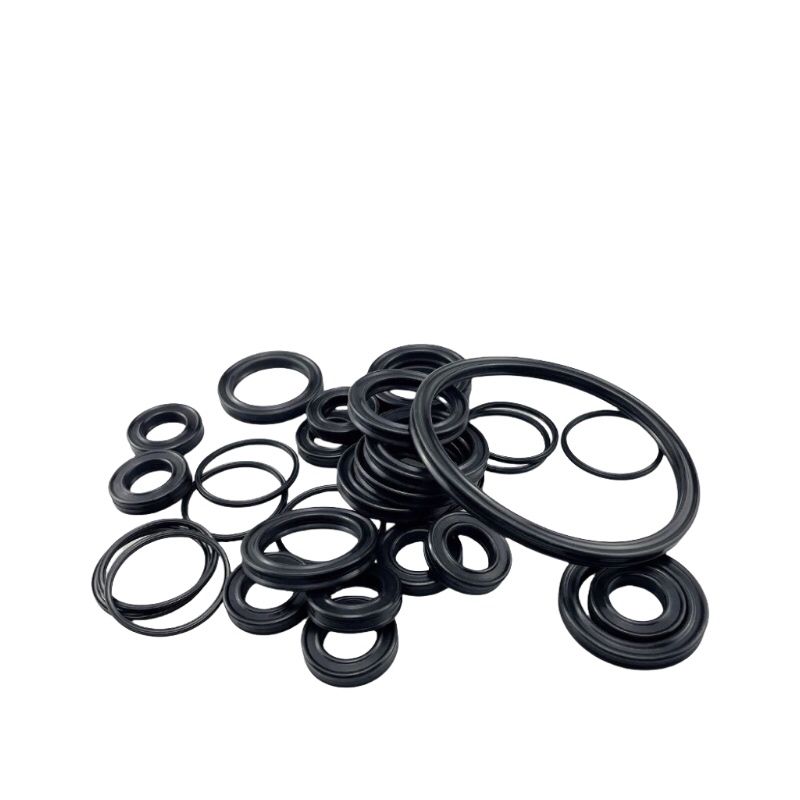

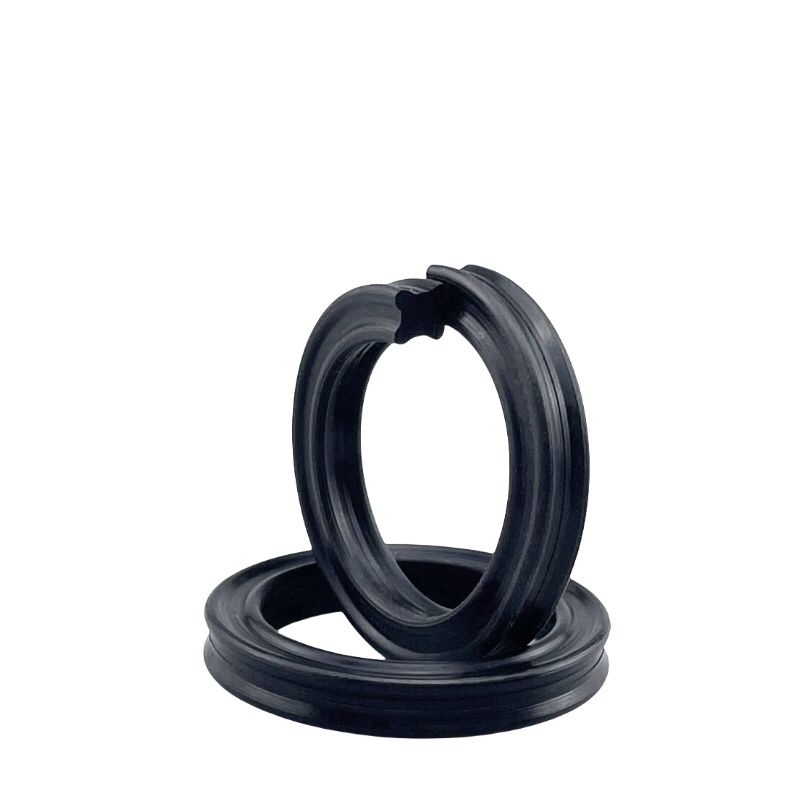

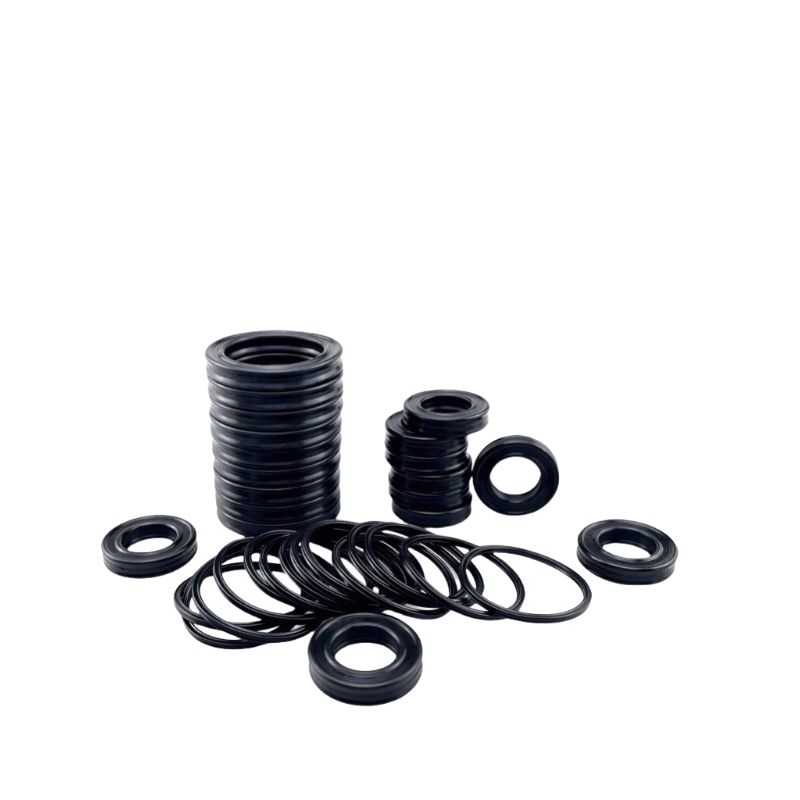

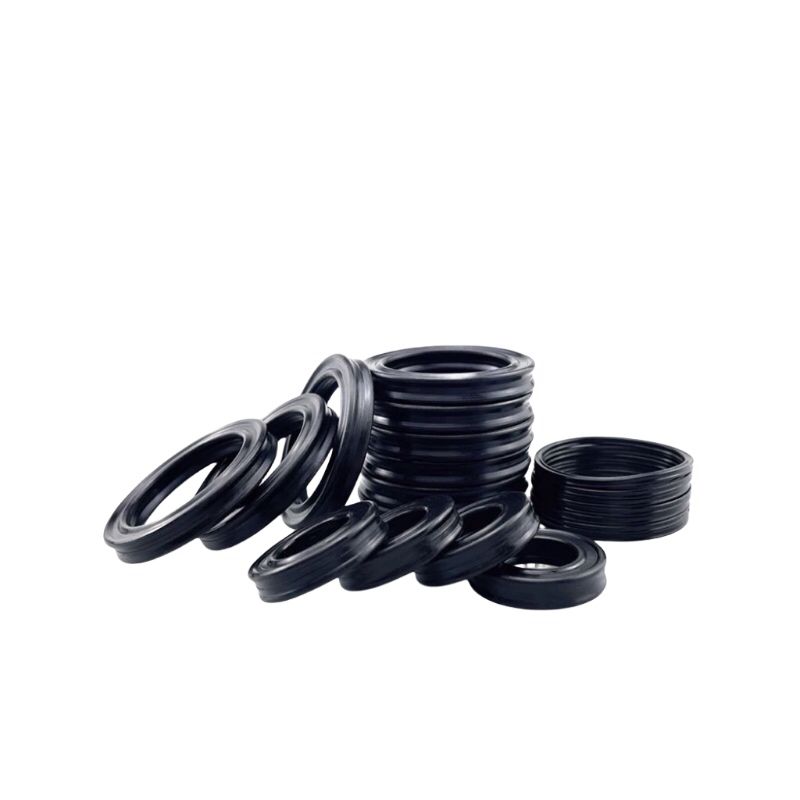

X ring
Products Model: X ring
Products Keywords: X Rings,Quad Rings
Products Description: ITEM : X RING Materil:NBR /Slicone / Viton CS:1.78mm / 2.62mm /3.53mm /5.33mm / 6.99mm
ITEM : X RING
Materil:NBR /Slicone / Viton
CS:1.78mm / 2.62mm /3.53mm /5.33mm / 6.99mm
Size:
| X Ring | X Ring | X Ring | X Ring | X Ring | X Ring | ||||||||||||||||
| No. | IDxCS(mm) | Material | No. | IDxCS(mm) | Material | No. | IDxCS(mm) | Material | No. | IDxCS(mm) | Material | No. | IDxCS(mm) | Material | No. | IDxCS(mm) | Material | ||||
| 1 | 1.78x1.78 | NBR/Viton | 1 | 1.2x2.62 | NBR/Viton | 48 | 59.99x2.62 | NBR/Viton | 1 | 4.34x3.53 | NBR/Viton | 56 | 136.12x3.53 | NBR/Viton | 17 | 34.29x5.33 | NBR/Viton | ||||
| 2 | 2.57x1.78 | NBR/Viton | 2 | 1.24x2.62 | NBR/Viton | 49 | 61.6x2.62 | NBR/Viton | 2 | 5.94x3.53 | NBR/Viton | 57 | 139.29x3.53 | NBR/Viton | 18 | 37.48x5.33 | NBR/Viton | ||||
| 3 | 2.9x1.78 | NBR/Viton | 3 | 2.06x2.62 | NBR/Viton | 50 | 63.17x2.62 | NBR/Viton | 3 | 7.52x3.53 | NBR/Viton | 58 | 142.47x3.53 | NBR/Viton | 19 | 40.64x5.33 | NBR/Viton | ||||
| 4 | 3.68x1.78 | NBR/Viton | 4 | 2.1x2.62 | NBR/Viton | 51 | 64.77x2.62 | NBR/Viton | 4 | 9.12x3.53 | NBR/Viton | 59 | 145.64x3.53 | NBR/Viton | 20 | 43.82x5.33 | NBR/Viton | ||||
| 5 | 4.47x1.78 | NBR/Viton | 5 | 2.84x2.62 | NBR/Viton | 52 | 66.34x2.62 | NBR/Viton | 5 | 10.69x3.53 | NBR/Viton | 60 | 148.82x3.53 | NBR/Viton | 21 | 46.99x5.33 | NBR/Viton | ||||
| 6 | 5.28x1.78 | NBR/Viton | 6 | 2.85x2.62 | NBR/Viton | 53 | 67.95x2.62 | NBR/Viton | 6 | 12.29x3.53 | NBR/Viton | 61 | 151.99x3.53 | NBR/Viton | 22 | 50.17x5.33 | NBR/Viton | ||||
| 7 | 6.07x1.78 | NBR/Viton | 7 | 3.6x2.62 | NBR/Viton | 54 | 69.52x2.62 | NBR/Viton | 7 | 13.87x3.53 | NBR/Viton | 62 | 158.34x3.53 | NBR/Viton | 23 | 52.34x5.33 | NBR/Viton | ||||
| 8 | 6.75x1.78 | NBR/Viton | 8 | 3.63x2.62 | NBR/Viton | 55 | 71.12x2.62 | NBR/Viton | 8 | 15.47x3.53 | NBR/Viton | 63 | 164.69x3.53 | NBR/Viton | 24 | 53.34x5.33 | NBR/Viton | ||||
| 9 | 9.25x1.78 | NBR/Viton | 9 | 4.4x2.62 | NBR/Viton | 56 | 72.69x2.62 | NBR/Viton | 9 | 17.04x3.53 | NBR/Viton | 64 | 171.04x3.53 | NBR/Viton | 25 | 56.52x5.33 | NBR/Viton | ||||
| 10 | 10.82x1.78 | NBR/Viton | 10 | 4.42x2.62 | NBR/Viton | 57 | 75.87x2.62 | NBR/Viton | 10 | 18.2x3.53 | NBR/Viton | 65 | 177.39x3.53 | NBR/Viton | 26 | 59.69x5.33 | NBR/Viton | ||||
| 11 | 12.42x1.78 | NBR/Viton | 11 | 5.32x2.62 | NBR/Viton | 58 | 82.22x2.62 | NBR/Viton | 11 | 18.64x3.53 | NBR/Viton | 66 | 177.39x3.53 | NBR/Viton | 27 | 61.60x5.33 | NBR/Viton | ||||
| 12 | 14x1.78 | NBR/Viton | 12 | 6.02x2.62 | NBR/Viton | 59 | 94.92x2.62 | NBR/Viton | 12 | 20.22x3.53 | NBR/Viton | 67 | 183.74x3.53 | NBR/Viton | 28 | 62.87x5.33 | NBR/Viton | ||||
| 13 | 14.84x1.78 | NBR/Viton | 13 | 7.6x2.62 | NBR/Viton | 60 | 101.27x2.62 | NBR/Viton | 13 | 21.82x3.53 | NBR/Viton | 68 | 190.09x3.53 | NBR/Viton | 29 | 64.59x5.33 | NBR/Viton | ||||
| 14 | 15.6x1.78 | NBR/Viton | 14 | 9.19x2.62 | NBR/Viton | 61 | 107.62x2.62 | NBR/Viton | 14 | 23.39x3.53 | NBR/Viton | 69 | 196.44x3.53 | NBR/Viton | 30 | 66.04x5.33 | NBR/Viton | ||||
| 15 | 17.17x1.78 | NBR/Viton | 15 | 12.37x2.62 | NBR/Viton | 62 | 113.97x2.62 | NBR/Viton | 15 | 24.99x3.53 | NBR/Viton | 70 | 202.79x3.53 | NBR/Viton | 31 | 69.22x5.33 | NBR/Viton | ||||
| 16 | 18.77x1.78 | NBR/Viton | 16 | 13.95x2.62 | NBR/Viton | 63 | 120.97x2.62 | NBR/Viton | 16 | 25.9x3.53 | NBR/Viton | 71 | 209.14x3.53 | NBR/Viton | 32 | 70.40x5.33 | NBR/Viton | ||||
| 17 | 20.35x1.78 | NBR/Viton | 17 | 14.7x2.62 | NBR/Viton | 64 | 126.67x2.62 | NBR/Viton | 17 | 26.57x3.53 | NBR/Viton | 72 | 215.49x3.53 | NBR/Viton | 33 | 72.39x5.33 | NBR/Viton | ||||
| 18 | 21.95x1.78 | NBR/Viton | 18 | 15.55x2.62 | NBR/Viton | 65 | 133.02x2.62 | NBR/Viton | 18 | 27.57x3.53 | NBR/Viton | 73 | 221.84x3.53 | NBR/Viton | 34 | 74.63x5.33 | NBR/Viton | ||||
| 19 | 23.52x1.78 | NBR/Viton | 19 | 17.13x2.62 | NBR/Viton | 66 | 139.37x2.62 | NBR/Viton | 19 | 28.17x3.53 | NBR/Viton | 74 | 228.19x3.53 | NBR/Viton | 35 | 75.57x5.33 | NBR/Viton | ||||
| 20 | 25.12x1.78 | NBR/Viton | 20 | 18.72x2.62 | NBR/Viton | 67 | 145.72x2.62 | NBR/Viton | 20 | 29.74x3.53 | NBR/Viton | 75 | 234.54x3.53 | NBR/Viton | 36 | 78.74x5.33 | NBR/Viton | ||||
| 21 | 26.7x1.78 | NBR/Viton | 21 | 20.29x2.62 | NBR/Viton | 68 | 152.07x2.62 | NBR/Viton | 21 | 38.37x3.53 | NBR/Viton | 76 | 240.89x3.53 | NBR/Viton | 37 | 81.92x5.33 | NBR/Viton | ||||
| 22 | 28.3x1.78 | NBR/Viton | 22 | 21.89x2.62 | NBR/Viton | 69 | 158.42x2.62 | NBR/Viton | 22 | 39.64x3.53 | NBR/Viton | 77 | 247.24x3.53 | NBR/Viton | 38 | 85.09x5.33 | NBR/Viton | ||||
| 23 | 29.87x1.78 | NBR/Viton | 23 | 22.22x2.62 | NBR/Viton | 70 | 164.77x2.62 | NBR/Viton | 23 | 40.87x3.53 | NBR/Viton | 78 | 253.59x3.53 | NBR/Viton | 39 | 86.64x5.33 | NBR/Viton | ||||
| 24 | 31.47x1.78 | NBR/Viton | 24 | 23.47x2.62 | NBR/Viton | 71 | 171.22x2.62 | NBR/Viton | 24 | 44.04x3.53 | NBR/Viton | 79 | 266.29x3.53 | NBR/Viton | 40 | 88.27x5.33 | NBR/Viton | ||||
| 25 | 33.05x1.78 | NBR/Viton | 25 | 25.07x2.62 | NBR/Viton | 72 | 177.47x2.62 | NBR/Viton | 25 | 47.22x3.53 | NBR/Viton | 80 | 272x3.53 | NBR/Viton | 41 | 89.34x5.33 | NBR/Viton | ||||
| 26 | 34.65x1.78 | NBR/Viton | 26 | 26.65x2.62 | NBR/Viton | 73 | 183.82x2.62 | NBR/Viton | 26 | 50.39x3.53 | NBR/Viton | 81 | 278.99x3.53 | NBR/Viton | 42 | 91.44x5.33 | NBR/Viton | ||||
| 27 | 41x1.78 | NBR/Viton | 27 | 28.25x2.62 | NBR/Viton | 74 | 190.17x2.62 | NBR/Viton | 27 | 53.57x3.53 | NBR/Viton | 82 | 285x3.53 | NBR/Viton | 43 | 92.5x5.33 | NBR/Viton | ||||
| 28 | 44.17x1.78 | NBR/Viton | 28 | 29.82x2.62 | NBR/Viton | 75 | 196.52x2.62 | NBR/Viton | 28 | 56.74x3.53 | NBR/Viton | 83 | 291.69x3.53 | NBR/Viton | 44 | 94.62x5.33 | NBR/Viton | ||||
| 29 | 50.52.x1.78 | NBR/Viton | 29 | 31.42x2.62 | NBR/Viton | 76 | 202.52x2.62 | NBR/Viton | 29 | 59.92x3.53 | NBR/Viton | 84 | 297.34x3.53 | NBR/Viton | 45 | 97.79x5.33 | NBR/Viton | ||||
| 30 | 53.7x1.78 | NBR/Viton | 30 | 33x2.62 | NBR/Viton | 77 | 209.22x2.62 | NBR/Viton | 30 | 63.09x3.53 | NBR/Viton | 85 | 304.39x3.53 | NBR/Viton | 46 | 100.97x5.33 | NBR/Viton | ||||
| 31 | 56.87x1.78 | NBR/Viton | 31 | 34.6x2.62 | NBR/Viton | 78 | 215.57x2.62 | NBR/Viton | 31 | 66.27x3.53 | NBR/Viton | 86 | 310x3.53 | NBR/Viton | 47 | 104.14x5.33 | NBR/Viton | ||||
| 32 | 60.05x1.78 | NBR/Viton | 32 | 34.6x2.62 | NBR/Viton | 79 | 221.92x2.62 | NBR/Viton | 32 | 69.44x3.53 | NBR/Viton | 87 | 329.79x3.53 | NBR/Viton | 48 | 106x5.33 | NBR/Viton | ||||
| 33 | 63.22x1.78 | NBR/Viton | 33 | 36.17x2.62 | NBR/Viton | 80 | 228.27x2.62 | NBR/Viton | 33 | 72.62x3.53 | NBR/Viton | 88 | 355.19x3.53 | NBR/Viton | 49 | 107.32x5.33 | NBR/Viton | ||||
| 34 | 66.4x1.78 | NBR/Viton | 34 | 37.77x2.62 | NBR/Viton | 81 | 234.62x2.62 | NBR/Viton | 34 | 75.79x3.53 | NBR/Viton | 89 | 380.59x3.53 | NBR/Viton | 50 | 110.49x5.33 | NBR/Viton | ||||
| 35 | 69.57x1.78 | NBR/Viton | 35 | 39.34x2.62 | NBR/Viton | 82 | 240.97x2.62 | NBR/Viton | 35 | 78.97x3.53 | NBR/Viton | 90 | 393x3.53 | NBR/Viton | 51 | 112.3x5.33 | NBR/Viton | ||||
| 36 | 72.57x1.78 | NBR/Viton | 36 | 40.94x2.62 | NBR/Viton | 83 | 247.32x2.62 | NBR/Viton | 36 | 82.14x3.53 | NBR/Viton | 91 | 405.26x3.53 | NBR/Viton | 52 | 113.67x5.33 | NBR/Viton | ||||
| 37 | 72.75x1.78 | NBR/Viton | 37 | 42.52x2.62 | NBR/Viton | 37 | 85.32x3.53 | NBR/Viton | 92 | 430.66x3.53 | NBR/Viton | 53 | 116.84x5.33 | NBR/Viton | |||||||
| 38 | 75.92x1.78 | NBR/Viton | 38 | 44.12x2.62 | NBR/Viton | 38 | 88.49x3.53 | NBR/Viton | 93 | 456.06x3.53 | NBR/Viton | 54 | 120.02x5.33 | NBR/Viton | |||||||
| 39 | 82.27x1.78 | NBR/Viton | 39 | 45.69x2.62 | NBR/Viton | 39 | 91.67x3.53 | NBR/Viton | 55 | 123.19x5.33 | NBR/Viton | ||||||||||
| 40 | 88.62x1.78 | NBR/Viton | 40 | 47.29x2.62 | NBR/Viton | 40 | 92.5x3.53 | NBR/Viton | 1 | 10.46x5.33 | NBR/Vition | 56 | 126.19x5.33 | NBR/Viton | |||||||
| 41 | 94.97x1.78 | NBR/Viton | 41 | 48.9x2.62 | NBR/Viton | 41 | 94.84x3.53 | NBR/Viton | 2 | 12.07x5.33 | NBR/Vition | 57 | 129.54x5.33 | NBR/Viton | |||||||
| 42 | 101.32x1.78 | NBR/Viton | 42 | 50.47x2.62 | NBR/Viton | 42 | 98.02x3.53 | NBR/Viton | 3 | 13.64x5.33 | NBR/Vition | 58 | 132.72x5.33 | NBR/Viton | |||||||
| 43 | 107.67x1.78 | NBR/Viton | 43 | 52.07x2.62 | NBR/Viton | 43 | 101.19x3.53 | NBR/Viton | 4 | 15.24x5.33 | NBR/Vition | 59 | 135.89x5.33 | NBR/Viton | |||||||
| 44 | 114.02x1.78 | NBR/Viton | 44 | 53.65x2.62 | NBR/Viton | 44 | 104.37x3.53 | NBR/Viton | 5 | 16.81x5.33 | NBR/Vition | 60 | 139.07x5.33 | NBR/Viton | |||||||
| 45 | 120.37x1.78 | NBR/Viton | 45 | 55.25x2.62 | NBR/Viton | 45 | 107.54x3.53 | NBR/Viton | 6 | 18.42x5.33 | NBR/Vition | 61 | 142.24x5.33 | NBR/Viton | |||||||
| 46 | 126.72x1.78 | NBR/Viton | 46 | 56.82x2.62 | NBR/Viton | 46 | 108.97x3.53 | NBR/Viton | 7 | 19.99x5.33 | NBR/Vition | 62 | 145.42x5.33 | NBR/Viton | |||||||
| 47 | 133.07x1.78 | NBR/Viton | 47 | 58.42x2.62 | NBR/Viton | 47 | 110.72x3.53 | NBR/Viton | 8 | 21.59x5.33 | NBR/Vition | 63 | 148.59x5.33 | NBR/Viton | |||||||
| 48 | 112x3.53 | NBR/Viton | 9 | 23.16x5.33 | NBR/Vition | 64 | 151.77x5.33 | NBR/Viton | |||||||||||||
| 49 | 113.89x3.53 | NBR/Viton | 10 | 24.77x5.33 | NBR/Vition | 65 | 155.59x5.33 | NBR/Viton | |||||||||||||
| 50 | 117.07x3.53 | NBR/Viton | 11 | 26.34x5.33 | NBR/Vition | 66 | 158.12x5.33 | NBR/Viton | |||||||||||||
| 51 | 120.24x3.53 | NBR/Viton | 12 | 27.94x5.33 | NBR/Vition | 67 | 164.47x5.33 | NBR/Viton | |||||||||||||
| 52 | 123.42x3.53 | NBR/Viton | 13 | 29.51x5.33 | NBR/Vition | 68 | 166.69x5.33 | NBR/Viton | |||||||||||||
| 53 | 126.59x3.53 | NBR/Viton | 14 | 31.12x5.33 | NBR/Vition | 69 | 168.2x5.33 | NBR/Viton | |||||||||||||
| 54 | 129.77x3.53 | NBR/Viton | 15 | 32.69x5.33 | NBR/Vition | 70 | 170.82x5.33 | NBR/Viton | |||||||||||||
| 55 | 132.94x3.53 | NBR/Viton | 16 | 34.29x5.33 | NBR/Vition | 71 | 170.82x5.33 | NBR/Viton | |||||||||||||
| X Ring | X Ring | X Ring | ||||||||
| No. | IDxCS(mm) | Material | No. | IDxCS(mm) | Material | No. | IDxCS(mm) | Material | ||
| 72 | 174.59x5.33 | NBR/Viton | 1 | 34.29x6.99 | NBR/Viton | 55 | 223.97x6.99 | NBR/Viton | ||
| 73 | 177.17x5.33 | NBR/Viton | 2 | 37.47x6.99 | NBR/Viton | 56 | 227.97x6.99 | NBR/Viton | ||
| 74 | 180.02x5.33 | NBR/Viton | 3 | 40.46x6.99 | NBR/Viton | 57 | 231.02x6.99 | NBR/Viton | ||
| 75 | 183.52x5.33 | NBR/Viton | 4 | 50.17x6.99 | NBR/Viton | 58 | 236x6.99 | NBR/Viton | ||
| 76 | 186.02x5.33 | NBR/Viton | 5 | 53.34x6.99 | NBR/Viton | 59 | 240.67x6.99 | NBR/Viton | ||
| 77 | 189.87x5.33 | NBR/Viton | 6 | 56.52x6.99 | NBR/Viton | 60 | 243.2x6.99 | NBR/Viton | ||
| 78 | 192.02x5.33 | NBR/Viton | 7 | 59.69x6.99 | NBR/Viton | 61 | 247.02x6.99 | NBR/Viton | ||
| 79 | 199.97x5.33 | NBR/Viton | 8 | 66.04x6.99 | NBR/Viton | 62 | 253.37x6.99 | NBR/Viton | ||
| 80 | 202.57x5.33 | NBR/Viton | 9 | 69.22x6.99 | NBR/Viton | 63 | 256x6.99 | NBR/Viton | ||
| 81 | 208.92x5.33 | NBR/Viton | 10 | 72.39x6.99 | NBR/Viton | 64 | 259.9x6.99 | NBR/Viton | ||
| 82 | 215.27x5.33 | NBR/Viton | 11 | 75.57x6.99 | NBR/Viton | 65 | 266.07x6.99 | NBR/Viton | ||
| 83 | 219x5.33 | NBR/Viton | 12 | 78.74x6.99 | NBR/Viton | 66 | 273x6.99 | NBR/Viton | ||
| 84 | 221.62x5.33 | NBR/Viton | 13 | 81.92x6.99 | NBR/Viton | 67 | 278.77x6.99 | NBR/Viton | ||
| 85 | 223.94x5.33 | NBR/Viton | 14 | 85.09x6.99 | NBR/Viton | 68 | 285.11x6.99 | NBR/Viton | ||
| 86 | 227.97x5.33 | NBR/Viton | 15 | 88.27x6.99 | NBR/Viton | 69 | 287x6.99 | NBR/Viton | ||
| 87 | 234.32x5.33 | NBR/Viton | 16 | 91.44x6.99 | NBR/Viton | 70 | 291.47x6.99 | NBR/Viton | ||
| 88 | 236x5.33 | NBR/Viton | 17 | 94.62x6.99 | NBR/Viton | 71 | 294.84x6.99 | NBR/Viton | ||
| 89 | 240.67x5.33 | NBR/Viton | 18 | 97.79x6.99 | NBR/Viton | 72 | 297.8x6.99 | NBR/Viton | ||
| 90 | 243.02x5.33 | NBR/Viton | 19 | 100.97x6.99 | NBR/Viton | 73 | 304.17x6.99 | NBR/Viton | ||
| 91 | 247.02x5.33 | NBR/Viton | 20 | 104.14x6.99 | NBR/Viton | 74 | 310.5x6.99 | NBR/Viton | ||
| 92 | 253.37x5.33 | NBR/Viton | 21 | 107.32x6.99 | NBR/Viton | 75 | 316.87x6.99 | NBR/Viton | ||
| 93 | 255x5.33 | NBR/Viton | 22 | 110.49x6.99 | NBR/Viton | 76 | 320.78x6.99 | NBR/Viton | ||
| 94 | 259x5.33 | NBR/Viton | 23 | 113.67x6.99 | NBR/Viton | 77 | 323.2x6.99 | NBR/Viton | ||
| 95 | 259.7x5.33 | NBR/Viton | 24 | 116.84x6.99 | NBR/Viton | 78 | 329.57x6.99 | NBR/Viton | ||
| 96 | 266.07x5.33 | NBR/Viton | 25 | 118x6.99 | NBR/Viton | 79 | 335x6.99 | NBR/Viton | ||
| 97 | 274.65x5.33 | NBR/Viton | 26 | 120.02x6.99 | NBR/Viton | 80 | 342.27x6.99 | NBR/Viton | ||
| 98 | 278.77x5.33 | NBR/Viton | 27 | 123.19x6.99 | NBR/Viton | 81 | 345x6.99 | NBR/Viton | ||
| 99 | 285x5.33 | NBR/Viton | 28 | 126.37x6.99 | NBR/Viton | 82 | 348x6.99 | NBR/Viton | ||
| 100 | 291.77x5.33 | NBR/Viton | 29 | 129.54x6.99 | NBR/Viton | 83 | 354.97x6.99 | NBR/Viton | ||
| 101 | 297.69x5.33 | NBR/Viton | 30 | 132.72x6.99 | NBR/Viton | 84 | 348x6.99 | NBR/Viton | ||
| 102 | 304.14x5.33 | NBR/Viton | 31 | 135.89x6.99 | NBR/Viton | 85 | 354.97x6.99 | NBR/Viton | ||
| 103 | 311.02x5.33 | NBR/Viton | 32 | 139.07x6.99 | NBR/Viton | 86 | 360x6.99 | NBR/Viton | ||
| 104 | 316.87x5.33 | NBR/Viton | 33 | 142.24x6.99 | NBR/Viton | 87 | 367.67x6.99 | NBR/Viton | ||
| 105 | 323x5.3 | NBR/Viton | 34 | 145.42x6.99 | NBR/Viton | 88 | 374.05x6.99 | NBR/Viton | ||
| 106 | 329.57x5.33 | NBR/Viton | 35 | 148.59x6.99 | NBR/Viton | 89 | 380.37x6.99 | NBR/Viton | ||
| 107 | 335x5.33 | NBR/Viton | 36 | 151.77x6.99 | NBR/Viton | 90 | 381.44x6.99 | NBR/Viton | ||
| 108 | 340x5.33 | NBR/Viton | 37 | 158.12x6.99 | NBR/Viton | 91 | 387.06x6.99 | NBR/Viton | ||
| 109 | 345x5.33 | NBR/Viton | 38 | 160.5x6.99 | NBR/Viton | 92 | 390x6.99 | NBR/Viton | ||
| 110 | 354.97x5.33 | NBR/Viton | 39 | 164.47x6.99 | NBR/Viton | 93 | 393.07x6.99 | NBR/Viton | ||
| 111 | 365x5.33 | NBR/Viton | 40 | 166.69x6.99 | NBR/Viton | 94 | 400x6.99 | NBR/Viton | ||
| 112 | 375.08x5.33 | NBR/Viton | 41 | 168.29x6.99 | NBR/Viton | 95 | 400.5x6.99 | NBR/Viton | ||
| 113 | 380.37x5.33 | NBR/Viton | 42 | 170.82x6.99 | NBR/Viton | 96 | 405.26x6.99 | NBR/Viton | ||
| 114 | 393x5.33 | NBR/Viton | 43 | 174.59x6.99 | NBR/Viton | 97 | 410x6.99 | NBR/Viton | ||
| 115 | 405.26x5.33 | NBR/Viton | 44 | 177.17x6.99 | NBR/Viton | 98 | 417.96x6.99 | NBR/Viton | ||
| 116 | 430.66x5.33 | NBR/Viton | 45 | 183.52x6.99 | NBR/Viton | 99 | 430.66x6.99 | NBR/Viton | ||
| 117 | 443.36x5.33 | NBR/Viton | 46 | 186.02x6.99 | NBR/Viton | 100 | 443.36x6.99 | NBR/Viton | ||
| 118 | 456.06x5.33 | NBR/Viton | 47 | 189.87x6.99 | NBR/Viton | 101 | 456.06x6.99 | NBR/Viton | ||
| 119 | 468x5.33 | NBR/Viton | 48 | 192.02x6.99 | NBR/Viton | 102 | 468.76x6.99 | NBR/Viton | ||
| 120 | 481.46x5.33 | NBR/Viton | 49 | 199.92x6.99 | NBR/Viton | 103 | 481.46x6.99 | NBR/Viton | ||
| 121 | 506.86x5.33 | NBR/Viton | 50 | 202.57x6.99 | NBR/Viton | 104 | 494.44x6.99 | NBR/Viton | ||
| 122 | 532.26x5.33 | NBR/Viton | 51 | 206x6.99 | NBR/Viton | 105 | 500.2x6.99 | NBR/Viton | ||
| 123 | 557.66x5.33 | NBR/Viton | 52 | 206.8x6.99 | NBR/Viton | 106 | 506.86x6.99 | NBR/Viton | ||
| 124 | 582.68x5.33 | NBR/Viton | 53 | 215.27x6.99 | NBR/Viton | 107 | 532.26x6.99 | NBR/Viton | ||
| 125 | 608.08x5.33 | NBR/Viton | 54 | 219.2x6.99 | NBR/Viton | 108 | 557.66x6.99 | NBR/Viton | ||
